        Location:Home >> Products >> HWB Automatic Veneer Patcher

        Products

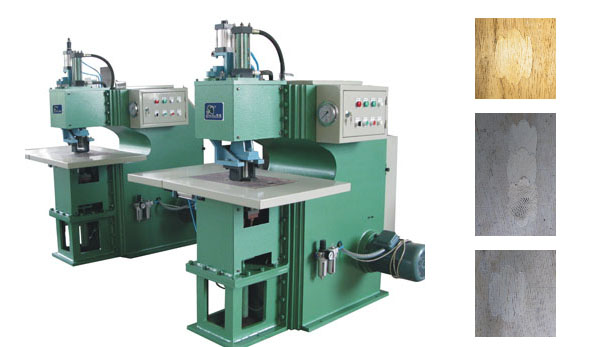

        HWB Automatic Veneer Patcher


        In particular wood-based panels plywood production process, we need to repair natural defects board. For a long time, China's plywood production enterprise is mostly hand-repair method approach, even with a knife die direct repair, and can only make out shapes and blocks, and then manually filling and paper tape or hot melt adhesive filaments, the process material costs, labor costs are also time-consuming, depending on the mend after being significantly affect the appearance.
        I produced a machine which automatically Veneer Patching a pressing mold, a mold and the upper and lower punches in a work process, complete all Buxiu work to solve the above problems, to fill gaps in the industry. The machine is suitable for a variety of wood veneer repair. It is simple, Wabu speed, can save a lot of manpower, reduce production costs and improve the quality level of the board.

        Mending veneer thickness

        0.8~3 mm

        Mending veneer size (butterfly model )

        40×60 mm

        60×100 mm

        75×130 mm

        90×150 mm

        Mending speed

        (Each process takes about 3~5 seconds.)

        Power

        4.25 KW

        6.05 KW

        Compressed air

        4~6kg/cm2

        Normal oil pressure

        16 MPa

        Diameter of cylinder

        Φ50 mm

        Φ63 mm

        Φ80 mm

        Φ80 mm

        Overall dimension

        1650L×1300 W×1750H mm

        1810L×1500W×1750H mm

        Approx weight

        1300 kg

        1500 kg
