Location：Home >> Products >> Semiautomatic Press Machine Products
|
 |
| Semiautomatic Press Machine |

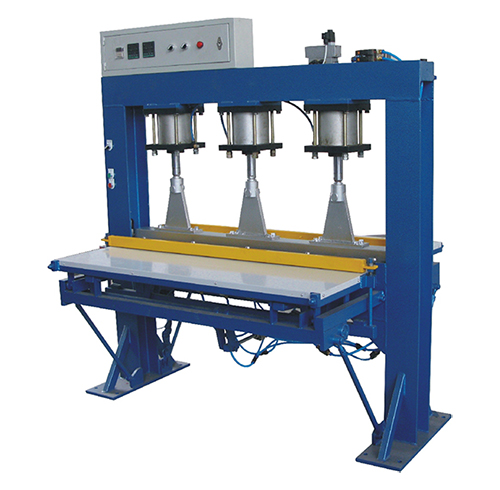

The Semiautomatic Press Machine is a modern machine which Hot-presses and splices the scrappy veneer of bevel polished and glue-spreaded. There are electrohead pipes heating the Hot Platen. There are Air Cylinders of up placed pressing the veneer. And there is Automatic Feeding Device beside both of the Rack feeding the veneer. When working, push the veneer to limiting baffle, then press button or foot switch. The Automatic Feeding Device clamps, feeds and hot-presses the veneer automatically. The Hot-pressing Bar will separate from veneer when the setting time arrives and the work process finishes.
Major Technical Parametrs
| Description |
Specification |
| Specification of hotplaten |
1400x70x50(mm) |
| Required air pressure |
0.4~0.6Mpa |
| Power |
2x1.8kw |
| Working stroke |
60mm |
| Overall dimension |
1760x1130x1820(mm) |
| Weight |
900kg |

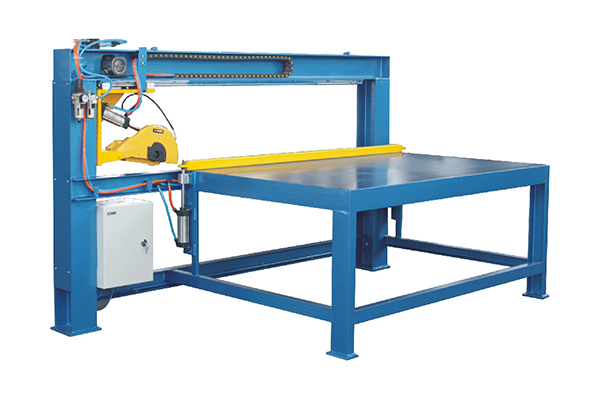

The machine is an ideal equipment to cut off veneer at fixed length,after joint by the Veneer Scarf Joint System in production of Plywood and Blockboard.And it is also one of the key equipment in the product line of Plywood and Blockboard.The machine cuts in high speed and feeds by precision track.Cutting veneer can be automatically controlled.Its feature is simple,practical in structure,simple to operate and highly automatic.
Major Technical Parametrs
| Cutting width |
≤1500mm |
| Cutting thickness |
1~8mm |
| The height of the worktable |
770mm |
| Rotation speed of the saw |
2900rpm |
| Feeding speed |
18m/min |
| Dimension of the saw |
(φ250 x 3.5 x φ25.4)mm |
| Power |
1600+60w |
| Overall dimension |
2500Lx1450Wx1450Hmm |
| Approx weight |
800kg |
| | |   |
|
|
